Blockstream Jade allows users to unlock their device with a PIN and a series of QR scans, instead of needing to connect via USB or Bluetooth. This is especially helpful for QR Mode users who prefer to use their Jade air-gapped and do not want to carry a SeedQR with them to spend.
Tip: This process will be similar for users who want to set up a new PIN using QRs during initialization.
Using QR PIN Unlock
1.

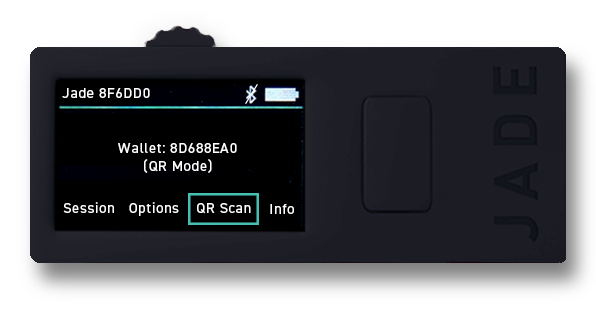

Turn on your Blockstream Jade and select QR Mode, then choose QR PIN Unlock.
2.
Visit the URL displayed on Jade's screen or scan the QR code with your phone's camera to access the QR PIN Unlock companion webpage. When the webpage is open, click the ✓ and enter your PIN on Jade.
3.
Begin Step 1 of the unlock process by scanning the QR codes on Jade's screen with the companion webpage.
Tip: Make sure your system and browser settings both have camera permissions enabled.
4.
After the scan is complete, the webpage will display an animated QR code. Click the ✓ on Jade to turn on Jade's camera and scan the QR codes on the webpage to complete Step 2.
5.
Once Jade has scanned the QR codes from the webpage, Jade will automatically show the QR codes for Step 3. Click Next on the companion webpage to open your phone's camera and scan the QR codes on Jade.
6.
Once the webpage has finished scanning, it will display the final QRs to be scanned by Jade. Click the ✓ on Jade once more to open it's camera and scan the QR codes on the webpage to complete the unlock process.
7.
Your Jade is now unlocked using a fully air-gapped workflow and you can continue to receive and send bitcoin using only Jade's camera and QR codes.
